Thermal and acoustic insulation board, consisting of mineralized extra-thin poplar wood wool bound with magnesite mineral. Wood wool is 1 mm wide. High quality boards for design acoustic absorption systems. It complies with EN 13168 and EN 13964. The boards are certified by ANAB-ICEA and natureplus for eco-compatibility of materials and manufacturing process.
Create with shapes or shape with patterns
NCS S 4040-R10C
Mantex panels can be classified as natural sound absorbers: they have a good sound absorption level, especially at the higher frequencies which are the most common, while, to improve performance at lower frequencies, it is useful to insert a layer of mineral wool in the interspace or use composite panels with rock wool. The research activity, and the desire to identify solutions to increasingly high performance, has made it possible to provide the designer with a large database of sound absorption certificates.
Wood-wool panels promote the well-being of users, especially in crowded buildings. Through a series of certificates of naturalness, they are certified environmentally friendly by ANAB-ICEA and natureplus that guarantee the non-harmfulness to health; they are tested as free of critical emissions of carcinogenic products, formaldehyde, volatile organic compounds VOC and asbestos, and comply with the standards of the regulation for the production of false ceilings, UNI EN 13964.
Mantex Acoustic Wood Wool is fire resistant and is type-approved as protective cladding with a class 1 coating.rock wool. The research activity, and the desire to identify solutions to increasingly high performance, has made it possible to provide the designer with a large database of sound absorption certificates.
Aesthetic superiority
High sound absorption performance
Reaction to the upper fire
Available in many varieties of edges and endless colors
Fire resistant
Unassailable from moisture and resistant to freezing / thawing
Waterproof
Resistant to impact and dynamic impacts
Durability
Going Green

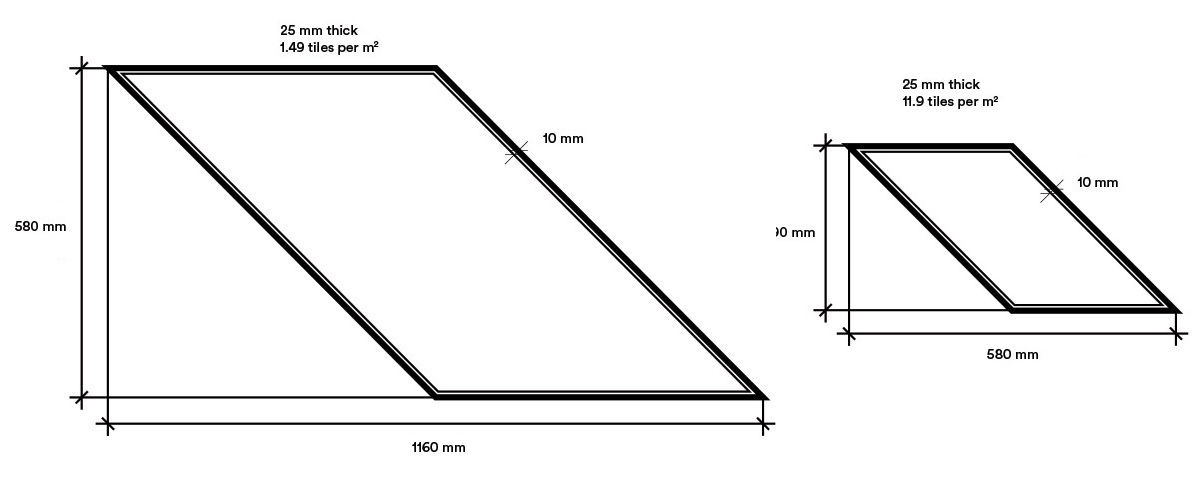

Dimensions
2440x1220 - 2440x600 - 1220x600 - 600x600
Thickness
15 - 20 - 25 mm
Reaction to fire
Euroclass B-s1, d0
1- Laying in adherence α w up to 0.50
2- Empty gap α w up to 0.70
3- Fill with rock wool α w up to 1.00
